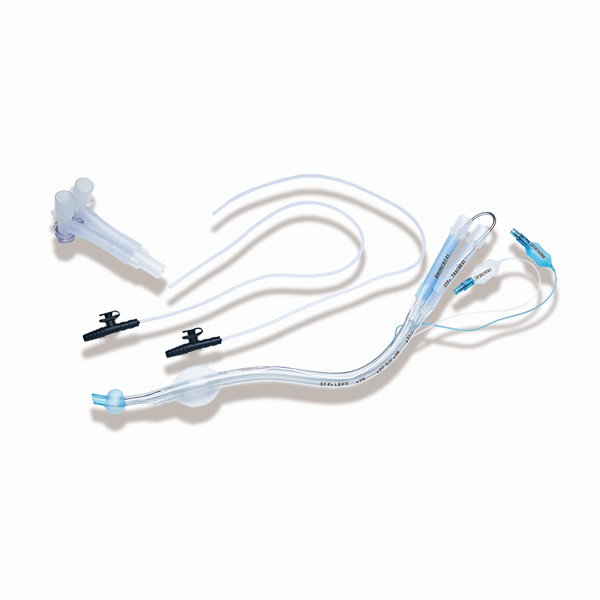

Disposable double lumen bronchial intubation

Product introduction:

It is used to insert into the patient's trachea and/or bronchi to create a temporary artificial breathing channel for patients, especially those who cannot breathe on their own.
[Product registration certificate number] Su Machinery No. 20232081064


Product Details

The scope of products

Used to be inserted into the patient's trachea or bronchi to create a temporary artificial prosthesis for patients, especially those who cannot breathe on their own. respiratory passages.

Model left side right side
Specifications 28Fr, 32Fr, 35Fr, 37Fr, 39Fr, 4lFr< /span>
2024050804002482
2024050804004563

Features

1. The front end of the bronchial intubation is slightly curved, which helps to improve the accuracy of the intubation on the left or right side. The position of the bronchus is placed so that the inner section of the bronchial segment is circular and the inner diameter is enlarged to facilitate the passage of the fiberoptic bronchoscope.

2. High-capacity and low-pressure cuff, the cuff section is designed to be flat, effectively blocking and reducing compression. Reduce damage to the patient's trachea and bronchi.

3. The double balloon structure is well fixed, not easy to shift, and has high safety. The indicator balloon and extension tube , cuffs are of the same color, with clear function guidance, and the bronchial cuff is blue, which facilitates the identification and positioning of the fiberoptic bronchoscope.

4. The fixed-type three-way connector can eliminate the need for multi-functional connectors and manage unilateral lung ventilation. more convenient.

5. The high-temperature melt head reduces damage to the patient’s respiratory mucosa, and Murphy hole thermal drilling technology prevents The patient end is blocked.

6. The indicating balloon and the cuff are synchronously linked, and the cuff filling status can be understood by observing the indicating balloon. , the edge and bevel of the cuff are polished and lubricated to prevent damage to the mucosa.



Right-sided bronchial cuff

2024050805045887



Left-sided bronchial cuff

> The right-sided product increases the safety of placing bronchial intubation near the upper lobe of the right lung by improving the shape of the bronchial cuff;

> The right-sided product makes holes at the edge of the bronchial sac to ventilate the upper lobe of the right lung;

> Left side type The product is specially designed at the head end of the intubation tube to facilitate selective unilateral ventilation;

> The sputum suction tube accessory that comes with the product is a disposable non-damaging sputum suction tube independently developed and produced by our company.
